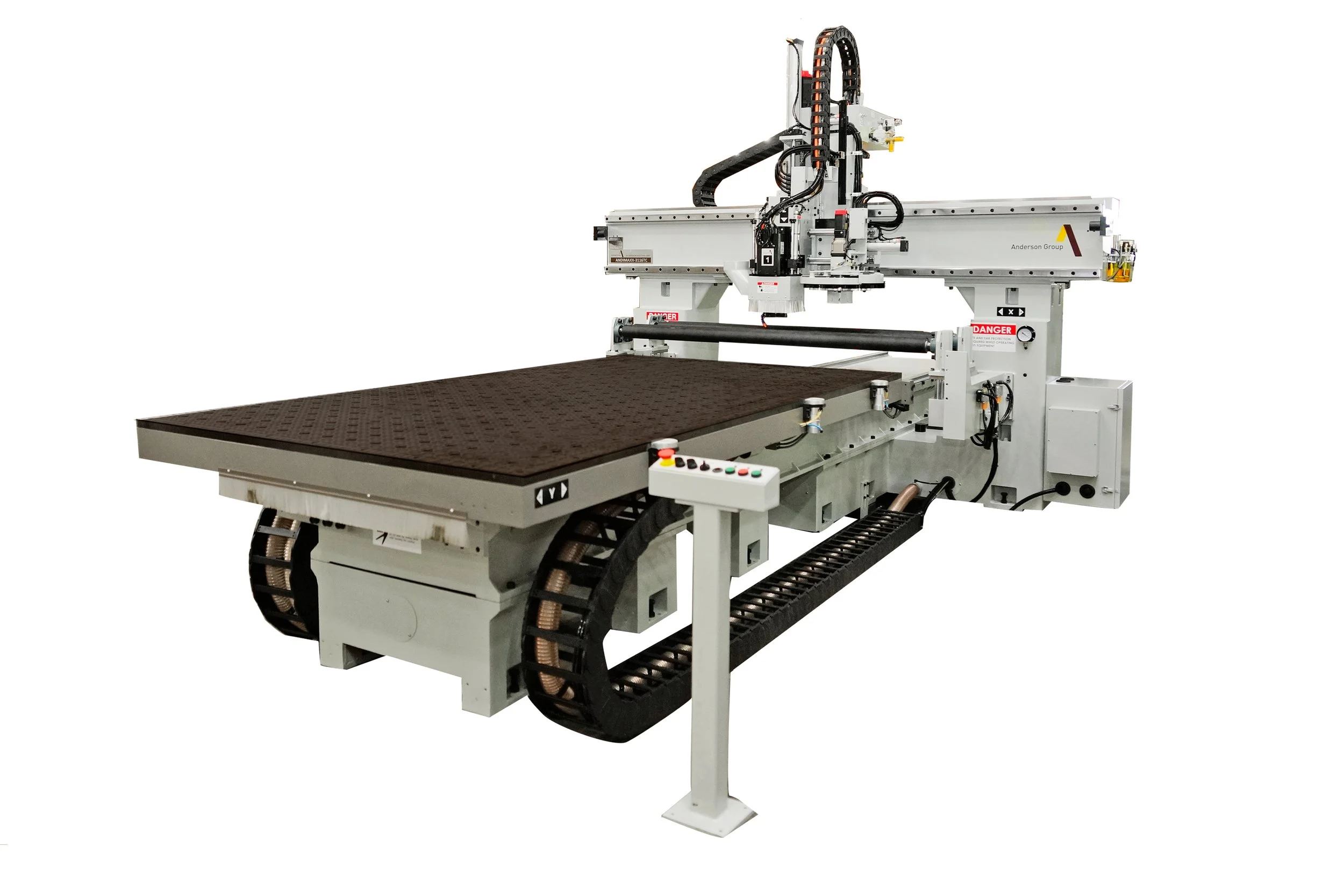

ANDIMAXX Series 3-Axis CNC

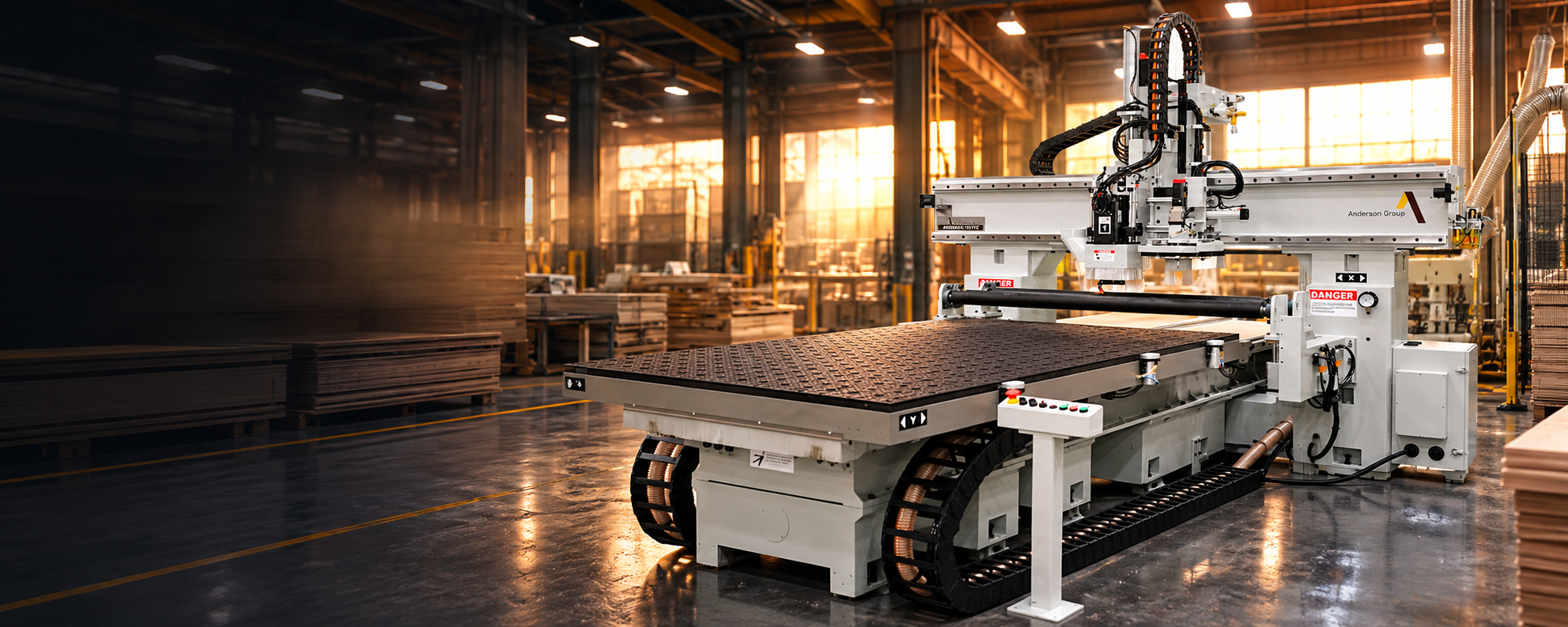

Elevate Your Machining with the ANDIMAXX Series 3-Axis CNC Machining Centers
Discover the next level of CNC accuracy and machining performance with the ANDIMAXX Series Moving Table 3-axis CNC machining centers. Engineered for excellence, the ANDIMAXX Series is your go-to solution for machining a wide array of materials including wood, MDF, plywood, plastic, aluminum, and composites.
Unbeatable Precision and Speed
The ANDIMAXX Series is designed to redefine what's possible in high-speed CNC machining. With a highly rigid base, steel weldments, and castings, coupled with a high-accuracy Servo System, this CNC machining center is built to handle heavy-duty tasks in both thin and thicker flat and aluminum plates.
Key Features:
Highly Rigid Base and Precision Components: Ensures optimal CNC machining performance.
Anderson Fixed Bridge and Moving Table Design: Allows for easy machine access and operation.
Webbed Steel Substructure: Maintains rigidity and smoothness in X, Y, and Z-axis cutting.
Ethernet-Enabled CNC Controls: Offers remote technical support for seamless CNC operation.
Workpiece Holding Flexibility: Choose from optional clamping, grid, or manifold vacuum systems for your CNC machining needs.
Industry-Standard G-Code: Ensures easy interfacing with all major CAD/CAM software and industry-standard solid modeling software packages.
Optional C-Axis: Enhances your CNC machining capabilities.
Transform Your CNC Machining with ANDIMAXX
The ANDIMAXX Series sets a new standard in high-speed CNC machining, capable of handling heavy-duty CNC machining tasks in thin and thicker flat and autoclaved composites. Don't settle for less; elevate your CNC machining capabilities with the ANDIMAXX Series.
Detailed Specifications of the ANDIMAXX Series 3-Axis CNC Machining Centers
Explore the comprehensive tables below to understand the full capabilities of the ANDIMAXX Series 3-Axis CNC Machining Centers. These tables provide a clear, easy-to-understand overview of the key specifications, features, and additional options of our advanced 3-axis CNC machining centers.
From high-precision servo systems to robust construction, every aspect of the ANDIMAXX Series is engineered to enhance your CNC machining process. Dive into the tables to see how the ANDIMAXX Series can be the game-changer in your production line.
| Basic Configuration | EXXACT plus | EXXACT plus duo |
|---|---|---|
| No. of tables | 1 | 1 |
| No. of vacuum zones per table | 1 or 2 | 1 |
| Table size X | 3700 mm (146 in) | 3100 mm (122 in) |
| Table size Y | 1600 mm (63 in) | 1600 mm (63 in) |
| Stroke of X-axis | 2000 mm (79 in) | 2000 mm (79 in) |
| Stroke of Y-axis | 4100 mm (162 in) | 3125 mm (123 in) |
| Stroke of Z-axis | 250 mm (10 in) *up to 600mm | 300 mm (11.8 in) |
| Rapid travel Speed in X | 80 M/min (3150“/min.) | 80 M/min (3150“/min.) |
| Rapid travel Speed in Y | 80 M/min (3150“/min.) | 80 M/min (3150“/min.) |
| Rapid travel Speed in Z | 30 M/min (1181“/min.) | 30 M/min (1181“/min.) |
| Spindle Data | ||
| Power | 18 HP / 24 HP | 24 HP |
| Max. Speed (rpm) | 24000 | 24000 |
| Clamping system | HSK-63F | HSK-63F |
| Ride along tool changer | 10 / 12 | 10 / 12 |
| Boring block | 5+5 or 10+7 | optional |
| Vacuum pump | 10/25/40 HP | 10/25/40 HP |
| Controller | FANUC 0i | FANUC 0i |
| Dimensions: Floor Area | 8550 x 3600 mm (337 x 142 in) | 7500 x 3600 mm (295 x 142 in) |
| Height | 3200 mm (126 in) | 2350 mm (92.5 in) |
| Weight | 13650 kg (30,100 lbs.) | 13650 kg (30,100 lbs.) |
| OPTIONAL | ||
| Vector Spindle HSK 63-E | optional | optional |
| Reverse Air Flow | optional | optional |
| Bar-Code Reader | optional | optional |
| C-axis | optional | optional |
| Gantry Offload Pusher | optional | optional |
| Automatic Loading | NA | NA |
Remember, our team is always ready to assist you with any questions or custom requirements you may have. Don't hesitate to reach out to us for more information.
